This will ship later in August! Limited pre-order edition!

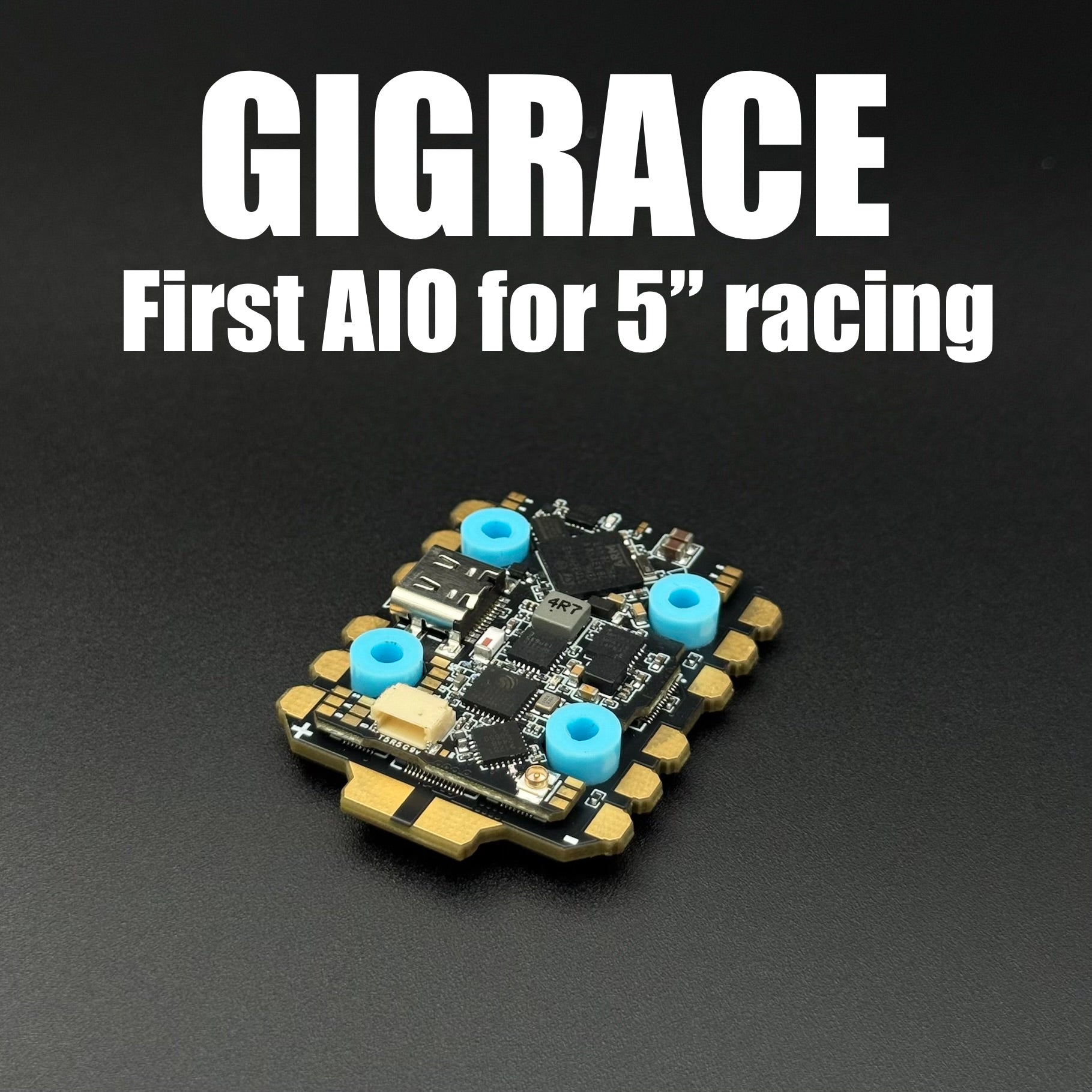

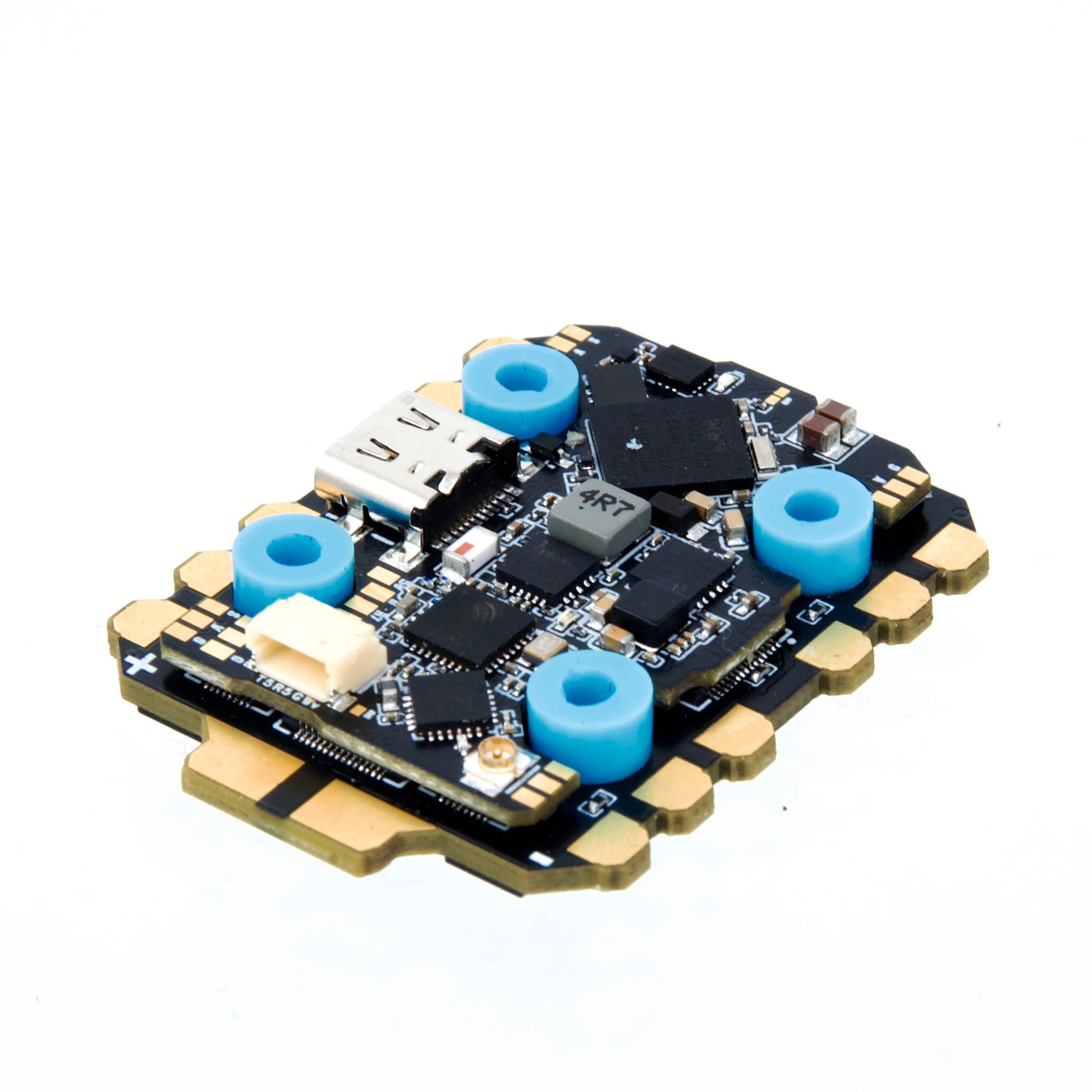

Skip all the hassle and wiring with the gigrace all in one! Just solder on motors, plug in vtx and you are all set. Compatible with current 20x20 frame mountings.
It features an ESC, FC, ELRS, 8 Bultin LEDs and a LED controller, all using the same configurator!
If you manage to break half the AIO, send it back and get a new full board for half the price! You only pay for what you break.
The GIGRACE has been used by Tim Fredriksson to rank 1st in Sweden and 23rd worldwide.
Please note! You must use this AIO with a capacitor and the best one is already included!
SPECS
MCU: STM32H743VIH6
GYRO: ICM42688-P
ELRS MCU: ESP32C3FH4
5V@4.5A regulator
9V@3A regulator
8 builtin addressable LEDs (parallel connected to external LED)
Led and 5v pads with soldering pads in each corner.
FIRMWARE
FC: GIGFLIGHT (Based on Betaflight) 4.5.2
Receiver: GIGLINK 3.5.6 (based and compatible with ELRS)
ESC: AM32 2.19
PACKAGE CONTENTS
1x GIGRACE
1x XT60 plug
1x 10cm 14awg wires
2x Alu polymer 330uF 50V capacitors
1x VTX cable
